[AM4917MZTL] Dino-Lite EdgePLUS Digital Microscope (USB 2, 1.3MP) AMR / EDOF / EDR / DPQ / POL / LWD - 10-140x

DINO-LITE

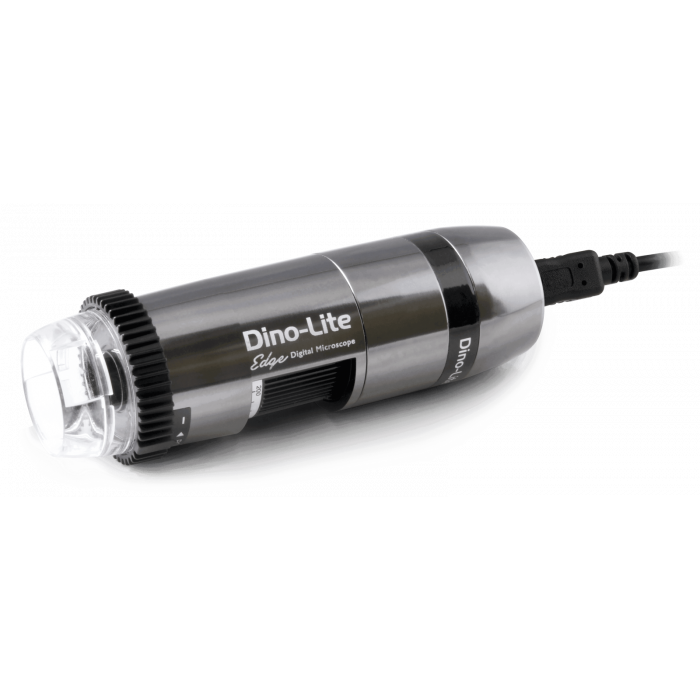

Product Information: AM4917MZTL USB Microscope

In stock

SKU S01492
  £1,192.61

    Product Information: AM4917MZTL USB Microscope


    Key Features:
    • 1.3 Megapixel Resolution
    • Extended Depth of Field (EDOF) Technology for enhanced focus
    • Automatic Magnification Reading (AMR) for precise measurements
    • Polarization Filter to reduce glare on reflective surfaces
    • Magnification up to 140x
    • Precision Measurement & Calibration


    The AM4917MZTL USB Microscope is designed for high-accuracy measurements, allowing users to analyze lines, angles, radii, and circles effortlessly. The integrated software ensures seamless real-time or post-image analysis, with the ability to export measurement data directly to Excel for streamlined documentation.

    The Automatic Magnification Reading (AMR) feature enhances measurement accuracy by automatically transferring magnification values to the software, reducing the likelihood of errors. This allows for consistent and reliable measurements, whether performed on live images or stored captures.

    To maintain calibration accuracy, the microscope includes a calibration standard and guided calibration process via the DinoCapture software, ensuring precise and reproducible results.

    Enhanced Image Clarity with EDOF Technology
    The Extended Depth of Field (EDOF) function enables the microscope to capture multiple focal layers, which are then combined into a single, high-clarity image. This feature is especially useful for product photography and inspection, where small objects with varying depths need to be fully in focus.

    Optimized Illumination & Polarization
    Built-in LED Ring Light: 8 adjustable white LEDs
    Advanced Flexible Light Control (eFLC): Adjusts brightness for better visualization
    Polarization Filter: Reduces glare on reflective surfaces, ideal for metallic and glossy objects
    Ergonomic Design & Adaptability
    Capless Operation: Enables unobstructed viewing
    Interchangeable Front Caps: Customizable for various applications
    Diffuser Technology: Improves light distribution for reduced reflections and better contrast
    Robust Aluminum Build for Portability
    Constructed with high-quality aluminum, the AM4917MZTL offers a durable yet lightweight design, making it suitable for both lab-based and field applications.

    Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!


    Technical Specifications
    • Manufacturer: Dino-Lite
    • Model Number: AM4917MZTL
    • Working Distance: Long
    • Resolution: 1.3 Megapixel
    • Magnification Range: 10x – 140x
    • Lighting System: 8 White LEDs with Flexible Light Control (FLC & eFLC)
    • Connection Type: USB 2.0
    • Material: Aluminum housing
    Features:
    • Extended Depth of Field (EDOF) for enhanced focus
    • Automatic Magnification Reading (AMR) for precision measurements
    • Polarization Filter to reduce reflections
    • Interchangeable Front Caps for versatile applications


    What Are Dino-Lite Microscopes?
    Dino-Lite digital microscopes offer high-resolution imaging and measurement capabilities for scientific research, industrial inspections, and precision engineering.

    USB connectivity for Windows & Mac
    Wireless models available for smartphone integration
    Software enables rapid surface analysis and component measurement
    One-click Excel export for efficient documentation
    Supports multiple image formats for flexible data management
    High-resolution imaging up to 8 megapixels for detailed visuals
    Magnification capabilities up to 900x, depending on the model


    Recommended Accessories:
    For optimal stability and precision, we recommend pairing the microscope with:
    Dino-Lite RK-05 Stand for fine adjustments and improved stability
    XY Cross Table for precise sample positioning
    Multifunctional V-Profile for advanced microscopy applications

    SKU S01492
    Manufacturer Dino-Lite
    Used for Art & Restoration, Jewellery, Medical devices, Precision Engineering
    Used by Industry, Laboratories, University, Hobbyist
    Model / Series EdgePlus
    Resolution (Megapixel) 1.3 MP
    Interface USB 2.0
    Magnification [x] 10x-140x
