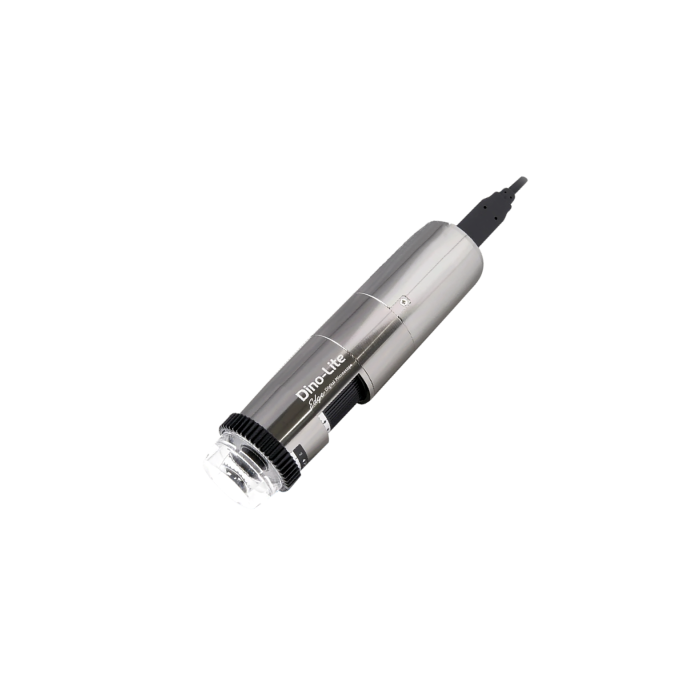

Product Information: AM8917MZTL USB Microscope

Key Features:
• 8 Megapixel Resolution
• Up to 140x Magnification
• EDOF - Extended Depth of Field
• eFLC - Extended Flexible Light Control
• Polarization Filter
• Measurement Function & Calibration
• Exceptional Image Quality

Experience 8 Megapixel resolution with crystal-clear images that reveal every fine detail. The 16:9 aspect ratio provides a wide, modern view, enhancing your investigations with true-to-life color accuracy and detail representation. This microscope captures textures, shades, and structures with remarkable clarity, making it ideal for precise analysis.

Precise Measurements and Reporting
With the included software, you can quickly and easily measure lines, angles, radii, and circles. The measurement results and corresponding images can be exported to Excel with a single click, making it easy to create comprehensive measurement reports.

Enhanced Accuracy with Automatic Magnification Reading (AMR)
The AMR function ensures the magnification is automatically transferred to the software, increasing accuracy and reducing measurement errors. You can perform measurements in LIVE mode or later on saved images, allowing for detailed post-analysis.

Extended Depth of Field for Sharp Images
The EDOF function (Extended Depth of Field) captures multiple images at different focal planes and stacks them to create a sharper, more detailed image with a greater depth of field. This feature is particularly useful for capturing small objects with a large depth of field, providing superior focus across the entire image.

Ideal Lighting for Every Sample
The microscope features 8 white LEDs with eFLC (Extended Flexible Light Control), allowing you to adjust the light to suit any sample. You can dim or completely turn off LEDs and toggle them in pairs for customizable lighting angles. The polarization filter helps reduce unwanted light reflections on the sample, especially for shiny surfaces, ensuring high-quality, accurate results.

Durability and Portability
The AM8917MZTL is built with a premium aluminum casing, offering both stability and lightness, making it perfect for mobile use while ensuring a long-lasting, durable product.

Product Specifications:
• Manufacturer: Dino-Lite
• Product Number: AM8917MZTL
• Working Distance: Standard
• Resolution: 8 Megapixels
• Magnification: 10x - 140x
• Connection: USB 2
• Housing Material: Aluminum
• Lighting: White / 8 LEDs
• Measurement Function & Calibration
• Polarization Filter
• eFLC - Extended Flexible Light Control
• Automatic Magnification Reading (AMR)
• EDOF - Extended Depth of Field
• Interchangeable Front Caps

What Are Dino-Lite Microscopes?
Dino-Lite USB Hand Microscopes are a series of high-resolution microscopes that easily connect to a Windows PC or Mac via USB. Alternatively, there are wireless models that can directly transmit to an Android smartphone. The included software allows for fast measurement of surfaces and components, with results easily exported to Excel. Images can be processed in virtually any format. With up to 8 Megapixels resolution, even the smallest details are captured in clear detail. The built-in chipset ensures excellent color and image reproduction. Depending on the model, you can achieve up to 900x magnification, with typical use between 50x and 230x magnification, making them versatile tools for a range of applications.

Our Recommendation:
For optimal fine adjustments, pair the AM8917MZTL with the RK-06 Stativ for enhanced precision, providing you with a complete setup for your laboratory needs.
