Crack Magnifier [6x, 8x, 10x or 12x] with Push-Focus+

Crack Magnifier [6x, 8x, 10x or 12x] with Push-Focus+

Unbeatable Optics, Made in Germany This high-grade magnifier has been made for sharp precision, very fine measuring and inspection with distortion-free viewing to the edges. Made from stainless steel (black), it also has a scale with a division of 0.1 mm in various lengths (see specifications) which is set at the foot at an angle of 45°. This angle has been selected to give you a more comfortable view of the scale avoiding any glare or reflections. The markings in the scale are very fine in detail and easily readable/distinguishable as they are also colored in black. Equipped with a unique push-focusable aplanatic lens system, which is made from silicate glass, this precision lens is very scratch-resistant, has a very high resolution (very sharp!) and produces an extremely high contrast image. Schweizer uses a UV absorbent optical crown as used with prescription lenses (refractive index n=1.52). This type of construction with an openly accessible scale is specially made for repeated procedures (i.e. using a tweezer) and it also helps avoid nudges keeping the magnifier in the steady desired position. If needed, the ocular can also be removed to be used as an eye-glass (but held by hand). Specifications: Magnification lens diameter corresponding scales 6x Ø 23 mm 20 mm scale length 8x Ø 23 mm 10 mm scale length 10x Ø 23 mm 10 mm scale length 12x Ø 23 mm 6 mm scale length Optional LED Leather Pouch

In stock

Grouped product items

    Unbeatable Optics, Made in Germany

    This high-grade magnifier has been made for sharp precision, very fine measuring and inspection with distortion-free viewing to the edges.

    Made from stainless steel (black), it also has a scale with a division of 0.1 mm in various lengths (see specifications) which is set at the foot at an angle of 45°. This angle has been selected to give you a more comfortable view of the scale avoiding any glare or reflections. The markings in the scale are very fine in detail and easily readable/distinguishable as they are also colored in black.

    Equipped with a unique push-focusable aplanatic lens system, which is made from silicate glass, this precision lens is very scratch-resistant, has a very high resolution (very sharp!) and produces an extremely high contrast image. Schweizer uses a UV absorbent optical crown as used with prescription lenses (refractive index n=1.52).

    This type of construction with an openly accessible scale is specially made for repeated procedures (i.e. using a tweezer) and it also helps avoid nudges keeping the magnifier in the steady desired position. If needed, the ocular can also be removed to be used as an eye-glass (but held by hand).

    Specifications:

    Magnification lens diameter corresponding scales
    6x Ø 23 mm 20 mm scale length
    8x Ø 23 mm 10 mm scale length
    10x Ø 23 mm 10 mm scale length
    12x Ø 23 mm 6 mm scale length

    Optional

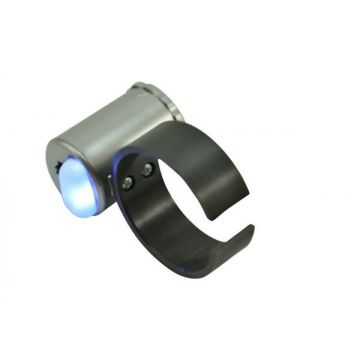

    LED

    Leather Pouch

    SKU 300608 300808 301008 301208
    Weight 0.050000 0.050000 0.050000 0.050000
    Magnification 6x 8x 10x 12x
    Lens Type Aplanatic Aplanatic Aplanatic Aplanatic
    Lens Material high-grade silica high-grade silica high-grade silica high-grade silica
    Lens diameter Ø 23mm 23mm 23mm 23mm
    Lens Shape round round round round
    LED colour Standard Standard Standard Standard
    Discounts available if you combine your accessory purchase with this product.
