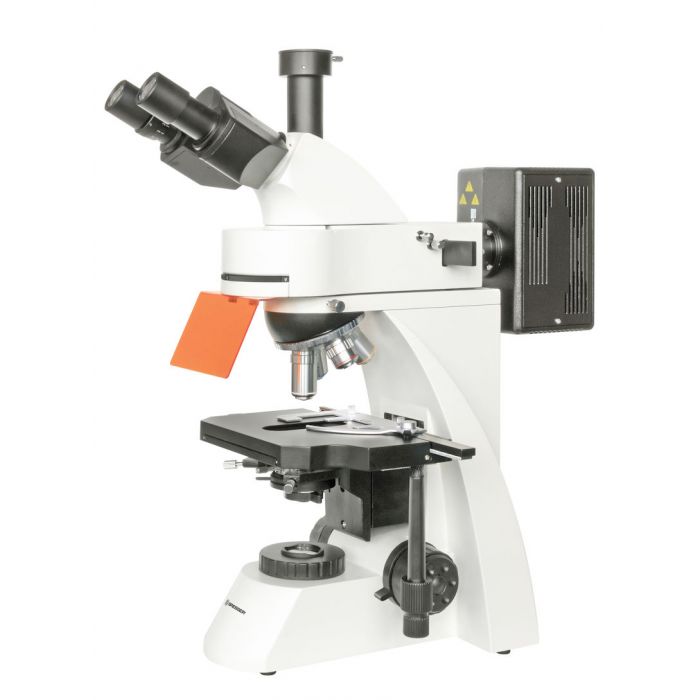

In the microscope's basis, there are a transmitted light LED illuminator (3 W) as well as the power supply and the continuous adjustable dimmer for transmitted light. The trinocular head allows to mount a SLR camera or a USB microscope camera with an optional adapter. The inclination of the eyepiece tubes is 30°. The fluorescence attachment includes a special LED wheel with four different lamps (green, blue, violett, ultraviolett), a filter wheel and a radiation shield. The LED lamps produces the exciting radiation in order to get fluorescence.
Fluorescence microscopy is done e. g. in biology, medicine, microchemistry, geology, semiconductor production and environmental protection. The Science ADL 601F LED is an instrument with an excellent value for money. It has also the other features, which are typical for high-quality microscopes: fourfold objective nosepiece, lengthwise and cross moveable stage, coaxial focusing knobs (concerning fine drive: 200 µm / full turn), adjustment of eye relief, diopter adjustment and the phototube. Optional available, general accessories are the wide field eyepieces (WF10x, WF15x), the dividing eyepiece (WF10x), and dark field condensers (dry and oil).

FEATURES

• Type: biology Microscope
• View: Trinocular
• Application range: Biology, Gemology, Botany, Education, Teaching, Entomology, Forensic, Research, Laboratory, Medical science, Pathology, Veterinary medicine
• Illumination:  LED
• Level: Intermediate, Expert
• Warranty: 2 years
• 1.25 Abbe-condenser with iris diaphragm and filter holder
• Incl. adjustable mechanical stage
• Integr. dimmer
• Adjustable eye relief
• Diopter adjustment

SCOPE OF DELIVERY

• Microscope
• 4 DIN-objectives (PL 4x, PL 10x, PL 100x oil, PL-FL 40x)
• 2x 10x eyepieces
• 1.25 Abbe-condenser with iris diaphragm and filter holder
• Fluorescence attachment with LED wheel (green, blue, violett, ultraviolett) and respective emission filters
• Immersion oil
• Full Koehler illumination for transmitted light
