Eschenbach bar+

Eschenbach bar+

Magnifications: 1.8x or 2x

In stock

Grouped product items

    Eschenbach Magnifying rulers

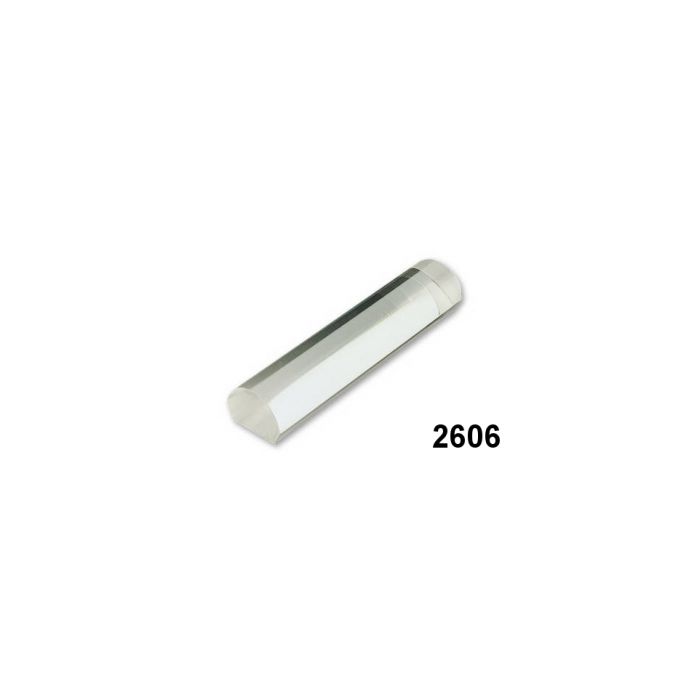

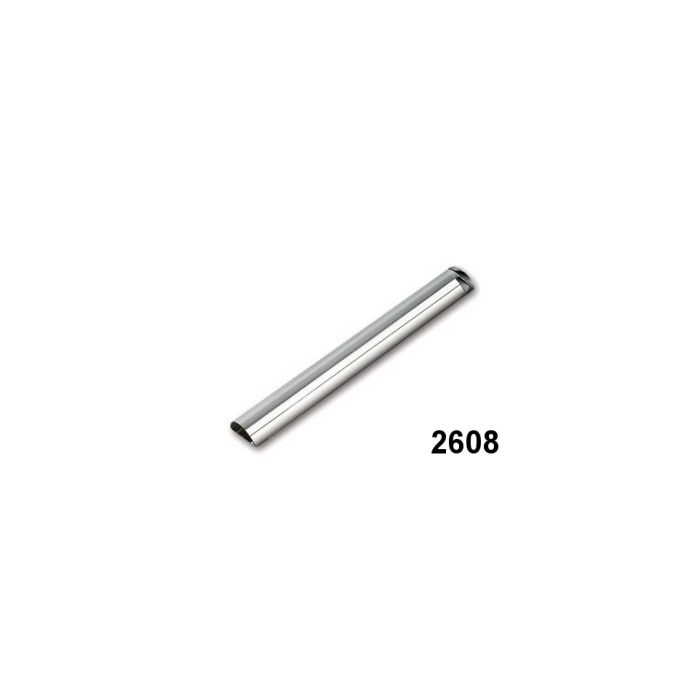

    Bar magnifying rulers provide shadow-free viewing for comfortable reading over long periods of time. Also designed for reading computer print outs and other detailed work. A special red line guide is inside the versions 2606 and 2608 (details below).

    Magnifying rulers only magnify in one direction, the height of the letters is therefore increased but the width remains the same.

    Use:

    Magnifying rulers allow strain-free reading over long periods of time, magnifies in the vertical direction only

    Particularly suitable for reading computer print-outs

    Technical information:

    Item No. 230106
    • Light-weight PXM® material, 200 x 25 mm
    • With grip bar
    • Magnification cylindrical 1.8x
    Item No. 2302061
    • Light-weight PXM® material, 122 x 26 mm
    • Aspheric surface
    • Magnification cylindrical 2.0x
    • Scratch-resistant underside
    • With red guide line to make it easier to follow the line of text
    • The 2606 magnifying ruler can also be used with the viso-lux large field magnifier
    • The 2302061 magnifying ruler is protected by the registered utility model G 29504928.6.
    Item No. 2302062
    • Light-weight PXM® material, 250 x 35 mm
    • Magnification cylindrical 1.8x
    • With red line guide to make it easier to follow the line of text

    PXM® The extremely lightweight and shatter-proof nature of PXM® lightweight lenses makes it possible to manufacture products which feature maximum image quality, ergonomic design and optimized performance characteristics.

    Made in Germany. Photos by Eschenbach.

    Summary

    Especially suitable for reading wide pieces of text.

    As they only magnify in one direction, they allow strain- free reading over long periods of time.

    Made in Germany

    From the initial concept right through to the finished product – the entire process takes place at the Nuremberg site. From the initial research and development of new product concepts, along with the construction of products and associated tools, right through to production using state-of-the-art manufacturing processes, ESCHENBACH OPTIK carries out all of this work at its site in Nuremberg. This is how we are able to guarantee exceptional brand quality “MADE IN GERMANY”. In the past, the present and the future.

    ESCHENBACH

    A global brand with tradition

    Almost 100 years of expertise, a perfect combination of traditional values with leading-edge technology, a focus on innovation and progress and an emphasis on maximum reliability and efficiency – since its establishment in 1913, these have been the criteria for success that have enabled ESCHENBACH OPTIK to become one of the leading supplier of optical products in Germany and throughout the world. The product portfolio ranges from eyewear frames, sunglasses and binoculars, right through to magnifying glasses, magnifiers and specialist vision technology products.

    SKU 230106 2302061 2302062
    Weight 0.070000 0.080000 0.160000
    Magnification 1.8x 1.8x 1.8x
    Lens Type Biconvex Biconvex Biconvex
    Lens Material PXM®-Material PXM®-Material PXM®-Material
    Lens diameter Ø 200x25mm 122x26mm 250x35mm
