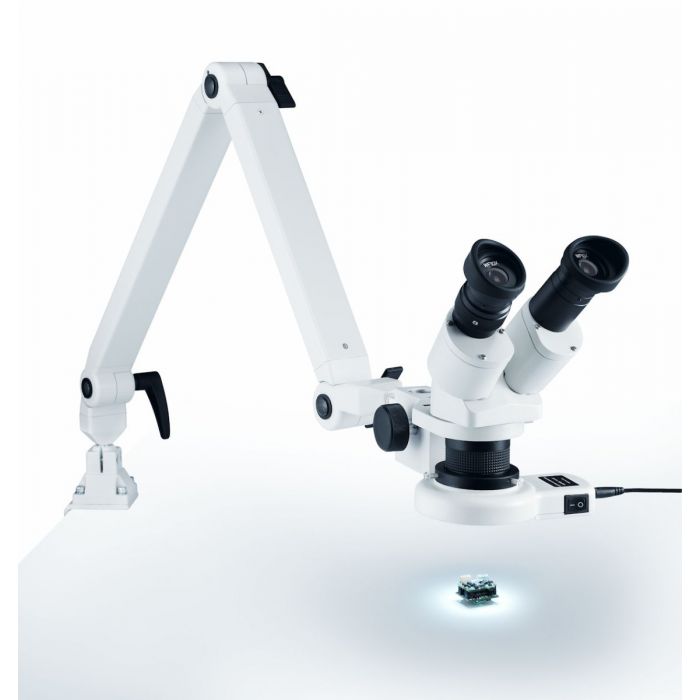

Incident light stereo microscope with LED incident light ring light and spring joint arm by Eschenbach

• Stereomicroscope with LED incident illumination and spring-jointed arm
• Magnification 10x or 20x, selectable by turning the lens barrel (1 x or 2x)
• Add up to 40x magnification with optional oculars
• Lenses: handling revolver 1x and 2x, lens arrangement parallel
• Eyepiece: Wide field: 10x
• Eyepiece tube with dioptre adjustment of +/- 5 dpt
• Eyecups included
• Sharpness: coarse drive on both sides
• spring balanced arm

  - 850mm long metal joint arm with 3 locking screws in the spring joints

  - arbitrarily detectable

  - with sturdy table clamp or fixed table stand (plate thickness up to 70mm)

• LED front lighting ring,

  - Mains voltage variable from 100V-240V, output voltage 18V, 3,6W

  - Dimensions 142 x 93 x 40mm

  - Inner diameter 50mm

  - Lifetime 20,000 hours

  - Light color 5800K

  - Brightness adjustable from 0 to 15000lx

Specifications:

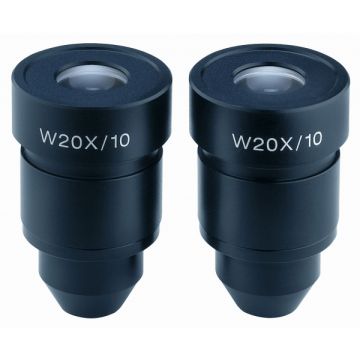

optional additional pairs of eyepieces (order under accessories):

with the following values:

(Eschenbach Manufacturer No. 33263)

Made in Germany!
