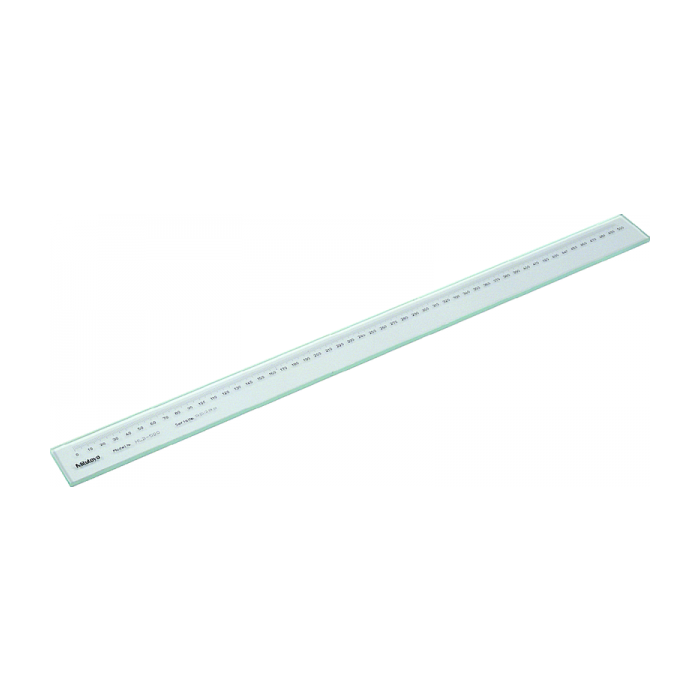

Mitutoyo Working Glass Scale + GB Inspection Certificate, 0.5mm+

Mitutoyo

Mitutoyo Working Glass Scale + GB Inspection Certificate, 0.5mm+

.

In stock

Grouped product items

Customizable Options:

    These high precision glass scales offer you the following benefits:
    • They are manufactured using Mitutoyo’s leading-edge Linear Scale production technology.
    • They are ideal for checking the magnification accuracy of profile projectors and microscopes, as well as the table feed accuracy of measuring equipment.
    Art.Nr.: 41452 41455 41457 41458 41459
    Mitutoyo Prod. No. 182-521-10 182-522-10 182-523-10 182-524-10 182-525-10
    Range: 0 - 100 mm 0 - 200 mm 0 - 300 mm 0 - 400 mm 0 - 500 mm
    Graduation: 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm
    Thickness of graduation line : 50 µm 50 µm 50 µm 50 µm 50 µm
    Delivered: In a wooden case with certificate of inspection In a wooden case with certificate of inspection In a wooden case with certificate of inspection In a wooden case with certificate of inspection In a wooden case with certificate of inspection
    Mass: 0.27 kg 0.32 kg 0.57 kg 0.71 kg 0.86 kg
    Accuracy: (1.5+2L/1000) µm
    L = measured length (mm)
         		 (1.5+2L/1000) µm
    L = measured length (mm)
         		 (1.5+2L/1000) µm
    L = measured length (mm)
         		 (1.5+2L/1000) µm
    L = measured length (mm)
         		 (1.5+2L/1000) µm
    L = measured length (mm)

    Material: Sodium glass Sodium glass Sodium glass Sodium glass Sodium glass
    Thermal expansion coefficient: (8±1) x 10-6/K (8±1) x 10-6/K (8±1) x 10-6/K (8±1) x 10-6/K (8±1) x 10-6/K
    Inch-Metric: Metric Metric Metric Metric Metric
    SKU 41452 41455 41457 41458 41459
    Weight 1.320000 1.330000 1.800000 1.920000 0.860000
    Size N/A N/A N/A N/A N/A
    Discounts available if you combine your accessory purchase with this product.
