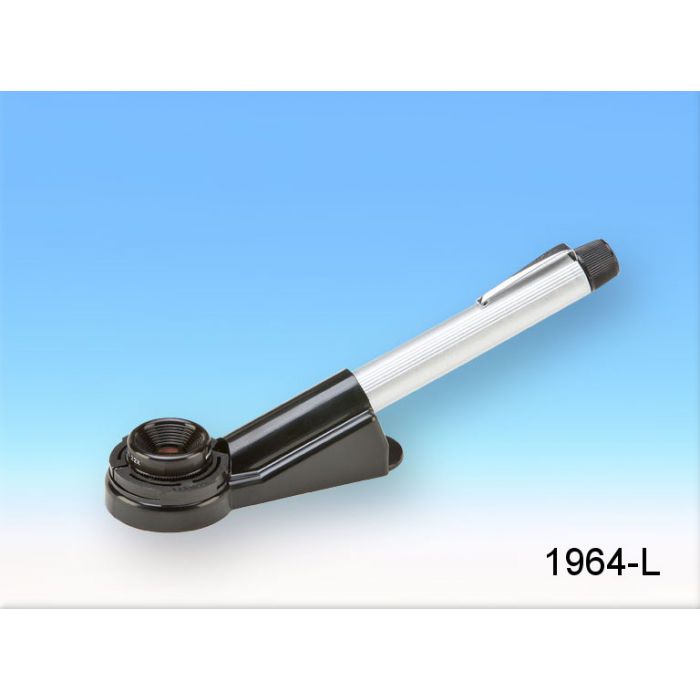

PEAK #1962/1964 - Stand Magnifiers+ [LED Optional]

PEAK #1962/1964 - Stand Magnifiers+ [LED Optional]

Magnification : 15x, 22x

In stock

Grouped product items

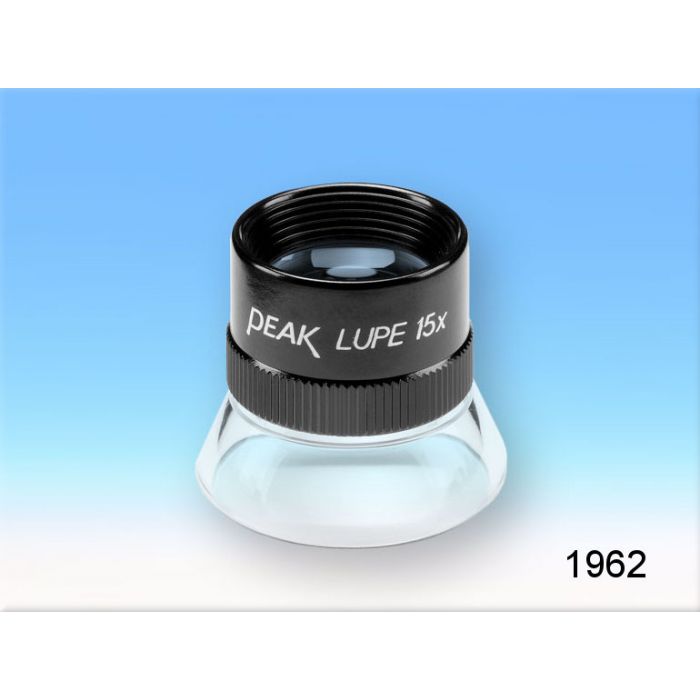

    This very popular 15x stand magnifier has an achromatic, coated optical system consisting of three lenses. The (distortion-free) magnification factor of 15x, which is already quite high for a small stand magnifier, provides a 15 mm field of view making it the ideal aid for precise inspection. For example, a magnification factor of 10x is no longer sufficient to checking printed dots.

    Specifications:

    Peak No. Magnification. Diameter Weight
    3215151 15x 15mm 18g
    3222151 22x 10mm 22g
    3215151
    • Magnification factor: 15 x
    • Focusable: No
    • Field of view: 15 mm
    • Scale: No
    • Lens: Achromatic, distortion-free
    • Dimensions: 35 x 32 mm
    • Weight: 18 grams
    • Box: included

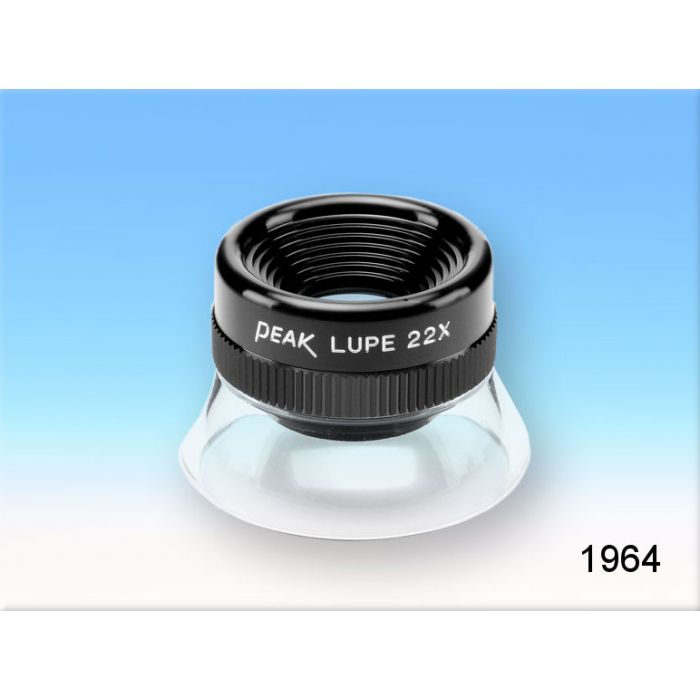

    3222151
    • Magnification: 22 x
    • Focusable: No
    • Field of view: 10 mm
    • Scale: No
    • Lens: Achromatic, distortion-free
    • Dimensions: 35 x 25 mm
    • Weight: 22 grams
    • Box: included
    SKU 3215151 3222151
    Weight 0.030000 0.040000
    Magnification 15x 22x
    Lens Type Achromatic Achromatic
    Lens Material plastic plastic
    Lens diameter Ø 15mm 10mm
    LED colour Standard Standard
