Specwell Monocular [10x20] + Microscope [30x or 45x] Stand+

SPECWELL
.

In stock

Grouped product items

    • The monocular is delivered with a stand and a close-up lens already attached to it. By screwing the close-up lens on the monocular, you get an excellent microscope.
    • Monoculars are used as positioning aids in the industry, among other uses. However, if the working distances without close-up lens are too big or if the magnification is not as high as necessary, then the close-up lens can be screwed on the monocular without the acrylic stand. The microscope’s fields of vision, magnifications and working distances will thus be achieved.
    • These monoculars are not only used in technology fields in combination with a close-up lens. Because of their extremely high light intensity, true-sided image and magnifications, these monoculars can also be used as visual aids.
    • The monocular lens system (ocular and objective) is achromatic (no chromatic aberration) and is antireflex coated.
    • The image is true-sided.
    • The monocular can be focused.
    • No scale

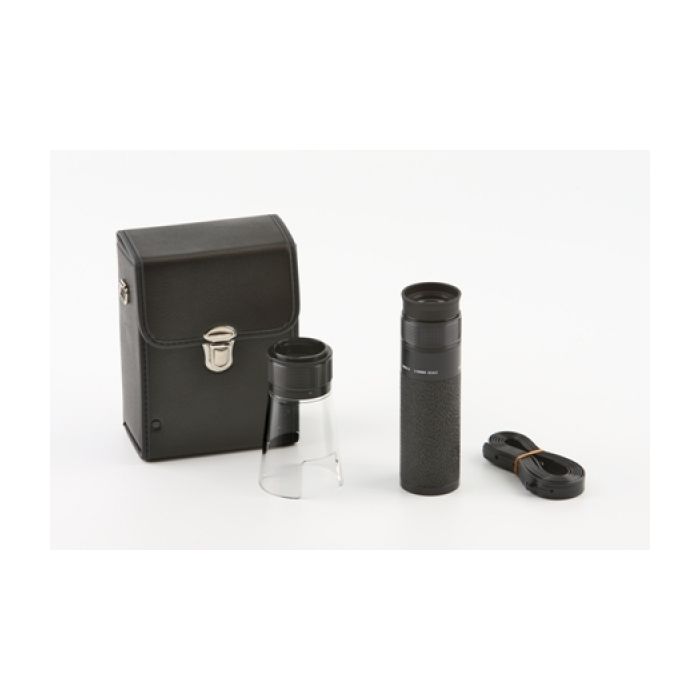

    Delivery includes: monocular with lens screwed to acrylic stand, high-quality box and strap.

      Monocular with long stand Monocular
    with short stand
    Magnification monocular without stand 10x 10x
    Magnification monocular, distance 300mm 18x 18x
    Magnification monocular with stand 30x 45x
    Working distance monocular (min.) 400mm 400mm
    Working distance microscope (min.) 66mm 66mm
    Visual field monocular, distance 1.000m
         		 105m 105m
    Visual field monocular, distance 400mm
         		 25mm 25mm
    Visual field with close-up lens 8mm 6mm
    Dimensions monocular without stand 106x32mm 106x32mm
    Dimensions monocular with stand    238x45mm   238x45mm
    Weight monocular without stand 170g 170
    Weight monocular with stand
         		 238g 238g
    Objective aperture 20mm 20mm
    Visual angle 6° 6°
    Relative brightness 4 4
    Pupil diameter 2mm 2mm
