BelOMO Crack Measuring Magnifier - 10x - with Scale

Out of stock

SKU 301002

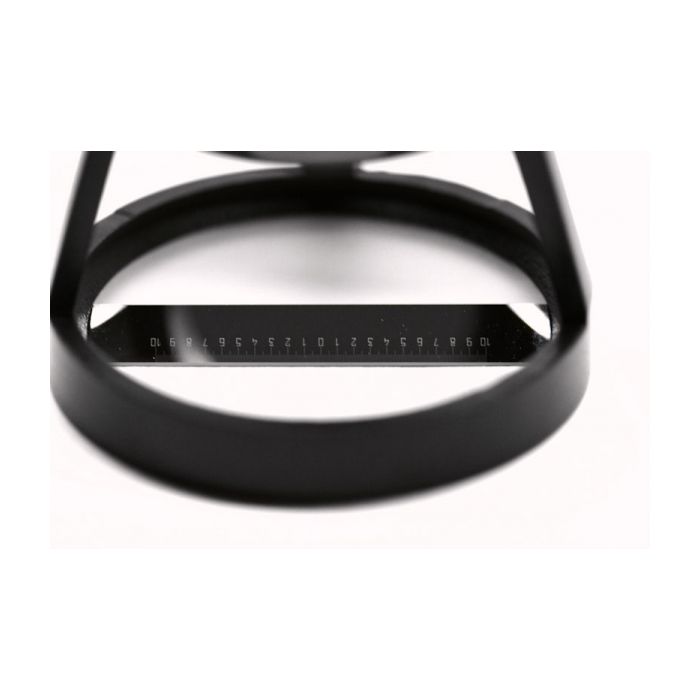

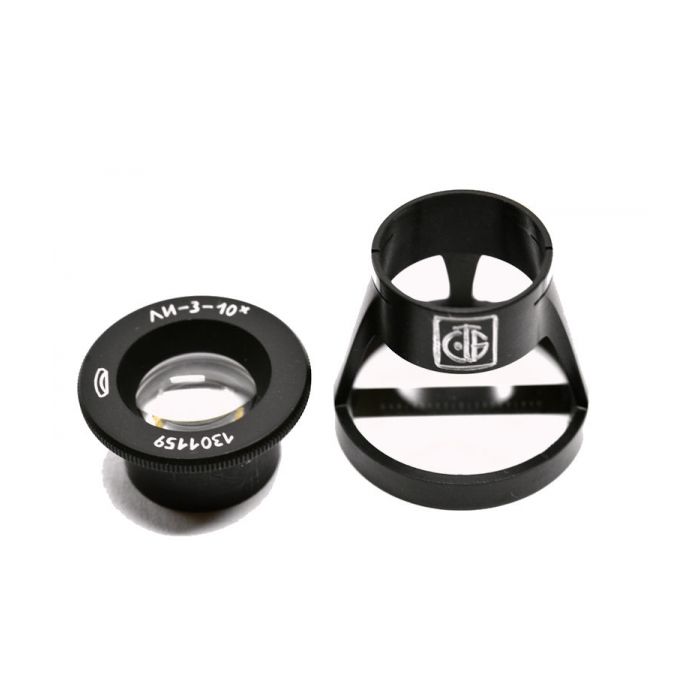

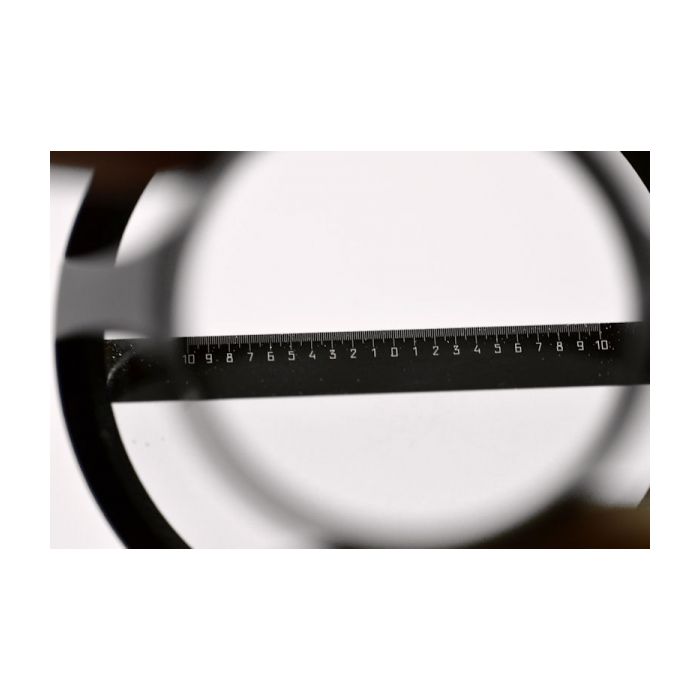

    The BelOMO® Measuring Loupe with Scale 10x is designed to measure the linear dimensions and consists of three lenses (triplet), with a metric graticule scale grid to measure the object to +/- 0.02mm. The scale is labelled from 0 - 20mm with 0.1mm increments.

    Specifications

    • Magnification: 10x
    • Distortion-free viewing
    • Focal Length (mm) 25 ± 0.5
    • Measuring Range (mm) 0 – 20
    • Scale Increments 0.1±0.01mm
    • Limits of Absolute Error of each measuring scale (mm) ±0.02
    • Overall Dimensions (mm) 34 x 35
    • Weight 0.04kg
    SKU 301002
    Weight 0.040000
    Manufacturer Belomo
    Magnification 10x
    Lens Type Aplanatic
    Lens diameter Ø 15mm
    Lens Material glass
    Scale included Yes
    Scale Length 20mm
    Scale Graduation 0.1mm
